Propelling Your Advanced Kinetic Advantage
Revolutionizing Electric Mobility
with Proyaka Systems
Proyaka offers high-voltage motor and inverter systems featuring permanent magnet electric motors,
power-dense electronic inverters, and advanced controls that enable electric vehicles to meet the
highest standards for efficiency, reliability, and performance.
e-Pump, e-Drive, e-Charging
System Solutions
Electric Drive systems
In addition to series motors, we also offer complete drive sets consisting of an electric motor,
a perfectly matched inverter

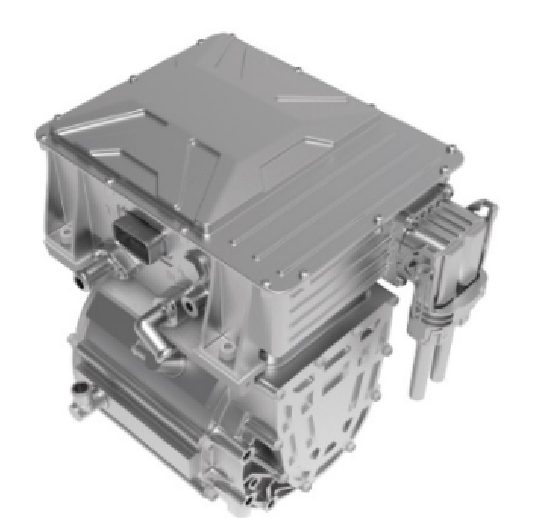

EDS35O - 2in1 Drive System
Motor + Converter
- Voltage: 330- 350V
- Peak Torque:161-220 Nm
- Peak Power: 75-91 kW
- Max Speed: 9000-13000 RPM
- IP68
- Application: Boat, Logistic vehicle, AC compressor
PMBAZ4810D - 2in1 Drive system
Motor + Controller
- Voltage: 48v
- Peak torque: 77 Nm
- Peak power: 11kw
- IP67
- Cooling: Passive
- Application: Golf carts
2 in 1 Belt-Driven Starter Generator
BLM intelligent Inverter-Based Generator
Motor + Controller 2 in 1
- Voltage: 9-16/20-30/32-60V
- Max AC output: 250Arms
- Peak motor Torque: 60 Nm
- Peak motor Power: 15kw
- Max speed: 16000RPM Continuous
- Application: EV, RV, Truck, Motocycle, UTV, Marine, Forklift, Lawn Mower, Wind Turbine, PTO

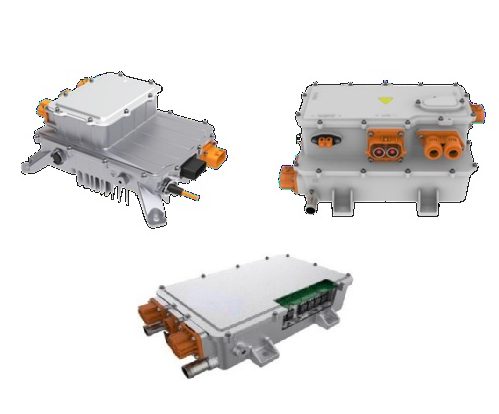

3 in 1 charging solutions
Compact, Light, High efficiency
- On-board charger, DC-DC, Power distribution unit 3-in1
- DC to AC power: 3.3kw, 6.6kw, 11kw
- DC to DC power: 1-6kw
- Input voltage: 220-450vac, 400/800vdc
- Cooling: Air / Liquid

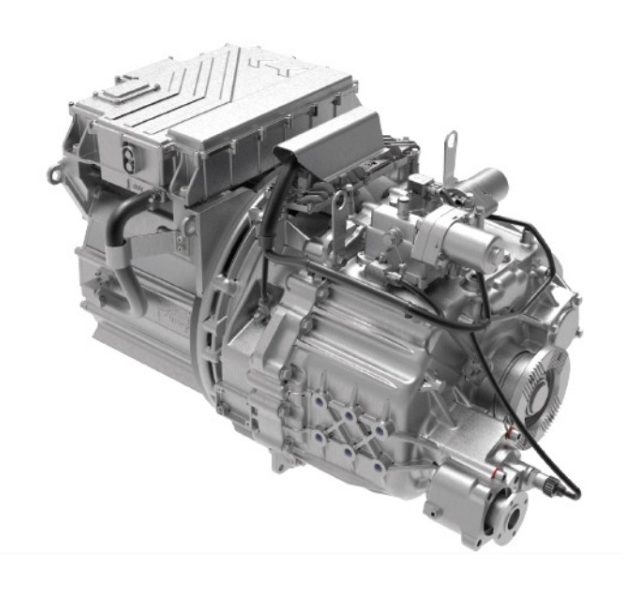

PMOD400H - 3in1 Drive System
Motor + Converter + Transmission
- Voltage: 630V
- Peak Torque: 2400 Nm
- Peak Power: 410 kW
- Max Speed: 3600 RPM
- IP67
- Application: Heavy truck
